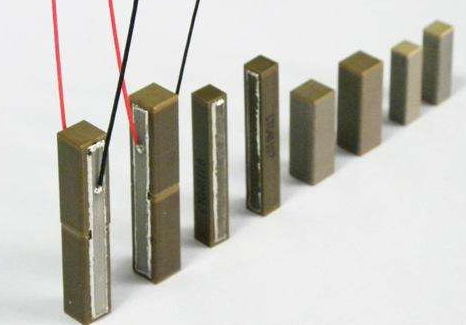

Ring Square Multilayer Piezoelectric Ceramic Actuator

Brand Name : HM

Model Number : ALL

Certification : CE, RoHS, SGS ISO9001:2008, ISO14001:2015

Place of Origin : CN

MOQ : 20

Price : $500~$5000

Payment Terms : MoneyGram PAYPLE

Supply Ability : 10000PCS/MONTH

Delivery Time : 30 WORK DAYS

Material : Piezoelectric Ceramics

Working Voltage : -20 To 150V DC

Operating Temperature Range : Operating Temperature Range: -20 To 120℃

Maximum Preload For Constant Force : 20MPa

Recommended Preload For Dynamic Operation : 15MPa

Shape : Rectangular And Square

Accurate Positioning : Nm

High-speed Response : Ms

Large Blocking Force : Large Blocking Force

High Energy Conversion Efficiency, Low Power Consumption And No Electromagnetic Noise : High Energy Conversion Efficiency, Low Power Consumption And No Electromagnetic Noise:

Easy To Be Controlled By Voltage : Easy To Be Controlled By Voltage

Precision Mechanics And Mechanical Engineering : Precision Mechanics And Mechanical Engineering

Life Sciences,Medicine And Biology : Life Sciences,Medicine And Biology

Pneumatic&Hydraulic Valves : Pneumatic&Hydraulic Valves

Nano Positioning/high-speed Switching : Nano Positioning/high-speed Switching

Active And Adaptive Optics : Active And Adaptive Optics

Contact Now

Piezo ceramics convert electrical energy directly into mechanical motion and vice versa, based on crystalline solid state effects. Piezo actuators are quite unique in combining force, speed and precise motion into a small package. To make them more accessible for OEM designers, manufacturers can package the actuators inside an arrangement of flexures providing precision guidance, amplified motion along with a simple mounting interface. Flexures are usually made of aluminum, steel or titanium. With the absence of friction and wear, they can provide 10’s of to 100’s of billions of cycles of maintenance-free service. Piezo motion devices allow position changes to be made in milliseconds or even microseconds and with precision down to sub-nanometers without difficulty. Piezo actuators (not to be confused with piezo motors) provide motion output proportional to a drive voltage – usually up to one millimeter and high dynamics with frequencies in the hundreds to thousands of Hz. There is no mechanical wear and no frictional parts to limit resolution: perfect conditions for many precision motion and positioning applications in industry, life sciences, microscopy, medical engineering and in space.

Piezoelectric ceramic microdisplacer, features:

Good linearity
2. Good repeatability
3. Small delay,
4. Fast response,
5. Features such as strong stability,

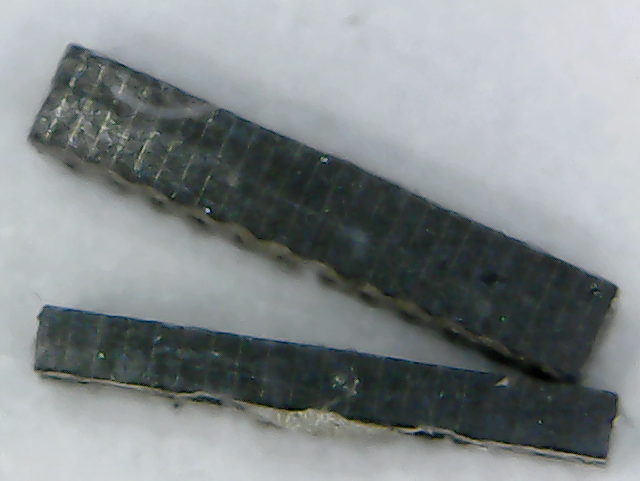

Ring Square Multilayer Piezoelectric Ceramic Actuator


It is a precision electric drive displacement device.
Can be used as
1. Polarization control,
2. Laser tuning,
3. Focusing,
4. Fine tuning of optical instruments
5. Optical switch,
6. Coupling adjustment of optical fiber and optical current,
7. Precision machine tool adjustment
8. Micro-motion platform adjustment and other fields

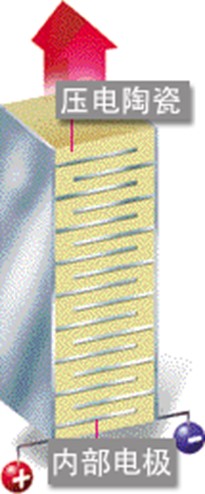

Ring Square Multilayer Piezoelectric Ceramic Actuator

Part numbering

Ring Square Multilayer Piezoelectric Ceramic Actuator

Dimensions


Ring Square Multilayer Piezoelectric Ceramic Actuator

Ring Square Multilayer Piezoelectric Ceramic ActuatorRing Square Multilayer Piezoelectric Ceramic Actuator

Specification

Model
 Dimensions Nominal displacement Blocking force Stiffness Electrical capacitance Resonance Frequency
OD/H [µm@150V] [N@150V] [N/µm] [µF] [kHz]
[mm] ±10% ±20% ±20%
HMY15014831 Φ14/79 83 7500 85 43 19
HMY15014241 Φ14.2/24 24 7500 312 16 62
HMY15014481 Φ14.2/48 48 7500 156 30 31
HMY15014201 Φ14.7/20 20 7500 375 13 75
HMY15014401 Φ14.7/40 40 7500 188 27 37.5
HMY15014801 Φ14.7/80 88 7500 85 50 18

* Customize on request.

Key Technical Index Unit Value
Relative dielectric constant εr3T - 3500±20%
Electromechanical coupling factor Kp - 70%
Longitudinal piezoelectric strain coefficient d33 10-12C/N ≥650
Piezoelectric voltage constant g33 10-3Vm/N 17
Elastic flexible coefficient S11E 10-12m2/N 14.3
Elastic flexible coefficient S33E 10-12m2/N 18.5
Dielectric loss tgδ 10-3 ≤1.5
M quality factor Qm - 45
Curie temperature TC ℃ 240
Density ρ g/cm3 7.9
